Package sizes include:
1-Quart Bottle
PRODUCT DESCRIPTION

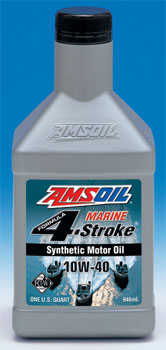

AMSOIL 10W-40 Formula 4-Stroke® Marine Synthetic Motor Oil (WCF) is a premium quality synthetic formulation engineered for the harsh operating conditions of marine environments. It withstands the intense mechanical action of continuous, high RPM operation to deliver superior viscosity protection. Formula 4-Stroke® Marine Synthetic Motor Oil is specially fortified with a heavy treatment of advanced additives that protects motors against wear, rust and deposits. It excels in both high horsepower applications and all-day trolling conditions. |
|
 4-Stroke Outboard Motor Warranty Certified
Formula 4-Stroke® Marine Synthetic Motor Oil is certified by the National Marine Manufacturers Association (NMMA) for use in four-stroke outboard motors. This high quality oil demonstrates outstanding performance, exceeding the NMMA “FC-W” (Four Cycle-Water) specification requirements. Formula 4-Stroke® Marine Synthetic Motor Oil fulfills the warranty requirements of four-stroke outboard motor manufacturers.
• NMMA Registration #FB-30010B 10W-40
Superior Protection Against Engine Wear

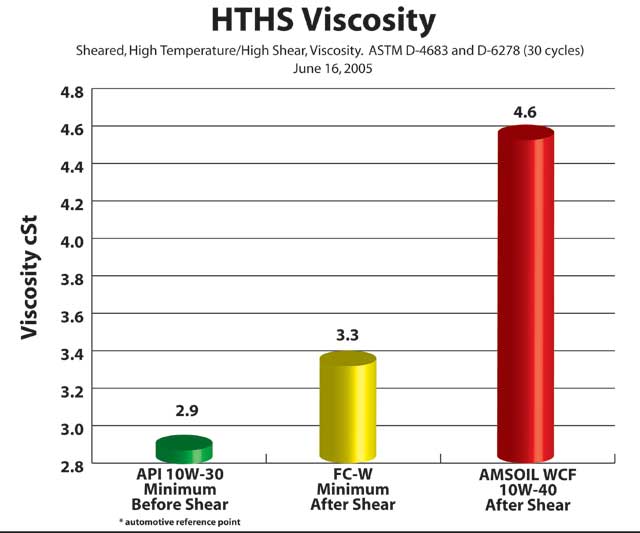

Marine engines operate under high loads and RPMs for extended periods of time, causing traditional automotive oils to break down and lose viscosity. To ensure good protection, the NMMA set minimum shear stability requirements for FC-W. AMSOIL Formula 4-Stroke® Marine Synthetic Motor Oil greatly exceeds the FC-W shear stability requirements, outperforming competitive oils to deliver a superior lubricating film. Formula 4-Stroke® Synthetic Oil also contains robust anti-wear additives that further reduce wear in metal-to-metal contact regions (see Four-Ball Wear Test graph).
 |
Click on graph
to see larger image |
While automobile engines normally operate at around 2,500 rpm, outboard motors can run twice as fast, requiring greater levels of wear protection and better bearing durability than automobiles. In addition, prolonged idling and low operating temperatures contribute to fuel dilution, further thinning the oil. To ensure adequate protection for their engines, marine engine manufacturers set minimum high temperature/high shear (HTHS) viscosity limits. AMSOIL Formula 4-Stroke® Marine Synthetic Motor Oils are shear stable and formulated with sophisticated oil additive chemistry, exceeding the HTHS requirements of both the API and NMMA FC-W (see graph).
Excellent Anti-Rust Performance
Marine engines are prone to rust, leading to uncontrolled wear and premature engine failure. However, good rust protection is not natural to engine oil. It comes only by design. Formula 4-Stroke® Marine Synthetic Motor Oil is fortified with a special anti-rust agent, even more than required to pass stringent NMMA FC-W anti-rust testing.
Applications
AMSOIL Formula 4-Stroke® Marine Synthetic 10W-40 Motor Oil (WCF) is recommended for gasoline fueled four-stroke outboard, inboard, inboard/outboard (I/O) and personal watercraft motors. AMSOIL WCF motor oil is recommended for the following applications whenever an SAE 10W-40, 15W-40, 25W-40 or straight SAE 40 oil is called for:
Four-stroke outboard motors: Honda®, Mercury®, Yamaha®, Johnson®/Evinrude®, Bombardier/BRP®, Suzuki®, Nissan®, Tohatsu®
Inboard and I/O: Mercruiser®, Volvo Penta®, OMC®, Chrysler® Marine, Crusader®, Marine Power®, Chevrolet®, Ford®
Personal Watercraft: Honda®, Yamaha®, Bombardier/BRP® (Sea-Doo®), Polaris®
Note: AMSOIL Formula 4-Stroke® Marine Synthetic 10W-40 is recommended for use in place of 25W-40 as specified by Mercury®.
NMMA FC-W • API SL
Service Life
• Four-stroke outboard motors and personal watercraft applications: Due to potential fuel dilution or water contamination, change oil at the engine or watercraft manufacturer recommended interval.
• Inboard and I/O applications: Change oil at two times the engine manufacturer recommended interval or one year, whichever comes first.
Mixing AMSOIL
AMSOIL Formula 4-Stroke® Marine Synthetic Motor Oil is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils will, however, shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.
Aftermarket oil additives are not recommended for use with AMSOIL motor oils.
Health & Safety
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). MSDS’s are available upon request at 715-392-7101. Keep Out of Reach of Children. Don’t pollute. Return used oil to collection centers.
|
TYPICAL TECHNICAL PROPERTIES |
| |
AMSOIL FORMULA 4-STROKE® MARINE SYNTHETIC MOTOR OIL (WCF)
SAE 10W-40, API SL, NMMA FC-W |
Kinematic Viscosity @ 100°C, cSt (ASTM D-445) |
14.1 |
Kinematic Viscosity @ 40°C, cSt (ASTM D-445) |
93.8 |
Viscosity Index (ASTM D-2270) |
154 |
CCS Viscosity, cP @ (°C) (ASTM D-5293) |
6871 (-25) |
Flash Point °C (°F) (ASTM D 92) |
234 (453) |
| Fire Point °C (°F) (ASTM D 92) |
254 (489) |
| Pour Point °C (°F) (ASTM D 97) |
-46 (-51) |
Noack Volatility, % weight loss (g/100g) (ASTM D-5800) |
6.40% |

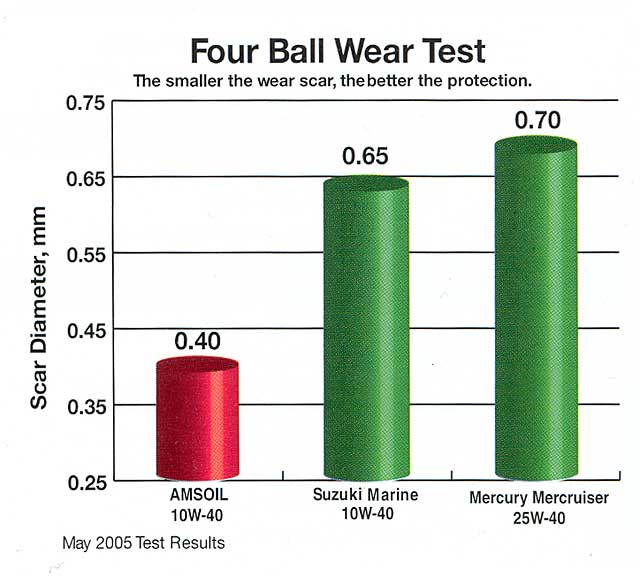

Four Ball Wear Test (ASTM D 4172 @ 40 kgf, 150°C, 1800 rpm, 1 hour, Scar in mm) |
0.40 |
| Total Base Number (ASTM D-2896) |
10.5 |
| HTHS (cP) |
4.6 |
| Humidity Cabinet Rust (ASTM D-1748) |
Pass |
|
Click here to BUY NOW at our on-line store
|
Package sizes include:
1-Quart Bottle
PRODUCT DESCRIPTION

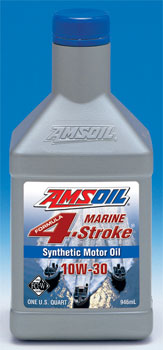

AMSOIL 10W-30 Formula 4-Stroke® Marine Synthetic Motor Oil (WCT) is a premium quality synthetic formulation engineered for the harsh operating conditions of marine environments. It withstands the intense mechanical action of continuous, high RPM operation to deliver superior viscosity protection. Formula 4-Stroke® Marine Synthetic Motor Oil is specially fortified with a heavy treatment of advanced additives that protects motors against wear, rust and deposits. It excels in both high horsepower applications and all-day trolling conditions. |
|
4-Stroke Outboard Motor Warranty Certified
Formula 4-Stroke® Marine Synthetic Motor Oil is certified by the National Marine Manufacturers Association (NMMA) for use in four-stroke outboard motors. This high quality oil demonstrates outstanding performance, exceeding the NMMA “FC-W” (Four Cycle-Water) specification requirements. Formula 4-Stroke® Marine Synthetic Motor Oil fulfills the warranty requirements of four-stroke outboard motor manufacturers.
• NMMA Registration #FB-30011B 10W-30
Superior Protection Against Engine Wear

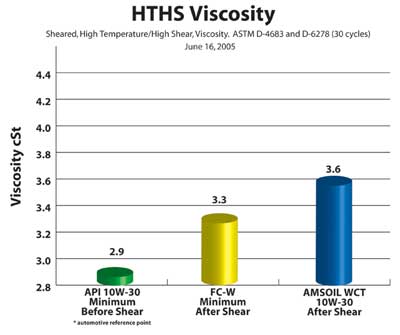

Marine engines operate under high loads and RPMs for extended periods of time, causing traditional automotive oils to break down and lose viscosity. To ensure good protection, the NMMA set minimum shear stability requirements for FC-W. AMSOIL Formula 4-Stroke® Marine Synthetic Motor Oil greatly exceeds the FC-W shear stability requirements, outperforming competitive oils to deliver a superior lubricating film. Formula 4-Stroke® Synthetic Oil also contains robust anti-wear additives that further reduce wear in metal-to-metal contact regions (see Four-Ball Wear Test graph).
 |
Click on graph
to see larger image |
While automobile engines normally operate at around 2,500 rpm, outboard motors can run twice as fast, requiring greater levels of wear protection and better bearing durability than automobiles. In addition, prolonged idling and low operating temperatures contribute to fuel dilution, further thinning the oil. To ensure adequate protection for their engines, marine engine manufacturers set minimum high temperature/high shear (HTHS) viscosity limits. AMSOIL Formula 4-Stroke® Marine Synthetic Motor Oils are shear stable and formulated with sophisticated oil additive chemistry, exceeding the HTHS requirements of both the API and NMMA FC-W (see graph).
Excellent Anti-Rust Performance
Marine engines are prone to rust, leading to uncontrolled wear and premature engine failure. However, good rust protection is not natural to engine oil. It comes only by design. Formula 4-Stroke® Marine Synthetic Motor Oil is fortified with a special anti-rust agent, even more than required to pass stringent NMMA FC-W anti-rust testing.
Applications
AMSOIL Formula 4-Stroke® Marine Synthetic 10W-30 Motor Oil (WCT) is recommended for gasoline fueled four-stroke outboard, inboard, inboard/outboard (I/O) and personal watercraft motors. AMSOIL WCT motor oil is recommended for the following applications whenever an SAE 5W-30, 10W-30 or straight SAE 30 oil is called for:
Four-stroke outboard motors: Honda®, Mercury®, Yamaha®, Johnson®/Evinrude®, Bombardier/BRP®, Suzuki®, Nissan®, Tohatsu®
Inboard and I/O: Mercruiser®, Volvo Penta®, OMC®, Chrysler® Marine, Crusader®, Marine Power®, Chevrolet®, Ford®
Personal Watercraft: Honda®, Yamaha®, Bombardier/BRP® (Sea-Doo®), Polaris®
Note: AMSOIL Formula 4-Stroke® Marine Synthetic 10W-30 is recommended for use in place of 5W-30 as specified by Honda®.
NMMA FC-W • API SL
Service Life
• Four-stroke outboard motors and personal watercraft applications: Due to potential fuel dilution or water contamination, change oil at the engine or watercraft manufacturer recommended interval.
• Inboard and I/O applications: Change oil at two times the engine manufacturer recommended interval or one year, whichever comes first.
Mixing AMSOIL
AMSOIL Formula 4-Stroke® Marine Synthetic Motor Oil is compatible with conventional and synthetic motor oils. Mixing AMSOIL motor oils with other oils will, however, shorten the oil life expectancy and reduce the performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.
Aftermarket oil additives are not recommended for use with AMSOIL motor oils.
Health & Safety
This product is not expected to cause health concerns when used for the intended application and according to the recommendations in the Material Safety Data Sheet (MSDS). MSDS’s are available upon request at 715-392-7101. Keep Out of Reach of Children. Don’t pollute. Return used oil to collection centers.
|
TYPICAL TECHNICAL PROPERTIES |
| |
AMSOIL FORMULA 4-STROKE® MARINE SYNTHETIC MOTOR OIL (WCT)
SAE 10W-30, API SL, NMMA FC-W |
Kinematic Viscosity @ 100°C, cSt (ASTM D-445) |
11.7 |
Kinematic Viscosity @ 40°C, cSt (ASTM D-445) |
74.5 |
Viscosity Index (ASTM D-2270) |
152 |
CCS Viscosity, cP @ (°C) (ASTM D-5293) |
6032 (-25) |
Flash Point °C (°F) (ASTM D 92) |
236 (457) |
| Fire Point °C (°F) (ASTM D 92) |
258 (496) |
| Pour Point °C (°F) (ASTM D 97) |
-48 (-54) |
Noack Volatility, % weight loss (g/100g) (ASTM D-5800) |
4.8% |

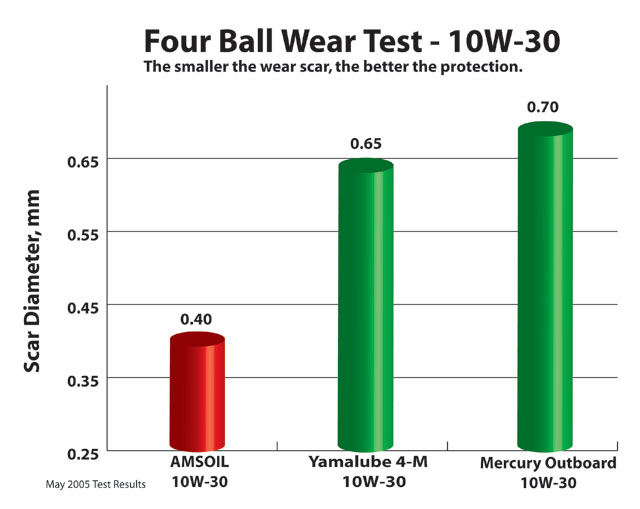

Four Ball Wear Test (ASTM D 4172 @ 40 kgf, 150°C, 1800 rpm, 1 hour, Scar in mm) |
0.40 |
| Total Base Number (ASTM D-2896) |
10.5 |
| HTHS (cP) |
3.64 |
| Humidity Cabinet Rust (ASTM D-1748) |
Pass |
|
Ea Motorcycle Oil Filters (EaOM)
AMSOIL INC. revolutionized the filtration industry with its introduction of AMSOIL Ea Air and Ea Oil Filters. For the first time exclusive nanofiber technology – the same technology used in the Abrams M1 tank and other heavy duty applications – was made available for automotive applications. Now, AMSOIL has made this outstanding new technology available for motorcycles and PWC's.
Application Guide can be read here
Nanofiber Basics
Because the nanofibers in AMSOIL Ea Motorcycle Oil Filter media are so small, there are more pores per square inch, allowing for higher dirt-holding capacity and lower pressure drop compared to traditional filter medias. Thinner media fibers produce more uniform pore size distribution, improving the filter’s overall ability to capture and retain particles.
Oil Filtration Basics
Clean oil is vital to engine performance and durability. Oil must lubricate, cool and clean the engine as it circulates. In order to remain effective, it must be filtered as it cycles. The filter is connected to the engine sump, which contains the oil pump. Full-flow filters pass all the oil output from the pump through the filter.
The function of the oil filter is to remove the contaminants introduced into the lubricating oil and prevent them from reaching sensitive engine parts without restricting normal oil flow to the various points requiring lubrication. Internal sources of contamination include wear products from the rubbing surfaces of the engine, blow-by gases leaking past the rings of the pistons and degradation of the oil itself. A filter must perform well in the areas of efficiency, capacity, flow and life.
Ea Motorcycle Oil Filters
Ea Motorcycle Oil Filters feature a specially constructed silicone anti-drainback valve and a nitrile sealing gasket to go along with the full-synthetic Ea nanofiber media. The anti-drainback valve provides excellent protection during startup and remains flexible in all temperatures, and the nitrile sealing gasket resists chemical breakdown, providing excellent durability and ensuring long filter life. AMSOIL Ea Motorcycle Oil Filters are fluted for easy removal from the motorcycle and are available in a chrome-plated alternative to the normal black filters.
Superior Filtration
The unique construction and full-synthetic media of AMSOIL Ea Motorcycle Oil Filters allow them to provide unmatched performance in motorcycles and other power sports equipment. EaOM Filters last longer, stop smaller dirt particles and offer less restriction than other filters. Ea Motorcycle Oil Filters provide filtering efficiency of 98.7 percent at 15 microns, outperforming the best cellulose/synthetic blend media on the market. For maximum engine protection, AMSOIL recommends changing the EaOM every time you change oil.
Superior Alternative, Multiple Applications
AMSOIL Ea Motorcycle Oil Filters provide unsurpassed protection for motorcycles, ATVs, four-stroke personal watercraft, four-stroke snowmobiles and four-stroke outboards. AMSOIL is producing an initial offering of 16 Ea Motorcycle Oil Filters manufactured for the most popular power sports applications. Eight of the 16 filters are chrome plated.
